Examples
Every card below is a live, solved model. Click one to open it in EduBeam with the full setup ready to edit—then drag a node, change a load or tick a hinge and watch the diagrams follow.
The same models are in the app under ☰ → Examples, and run.edubeam.app/?panel=examples opens that gallery directly.
Suggested exercises
- Indeterminate beam: untick

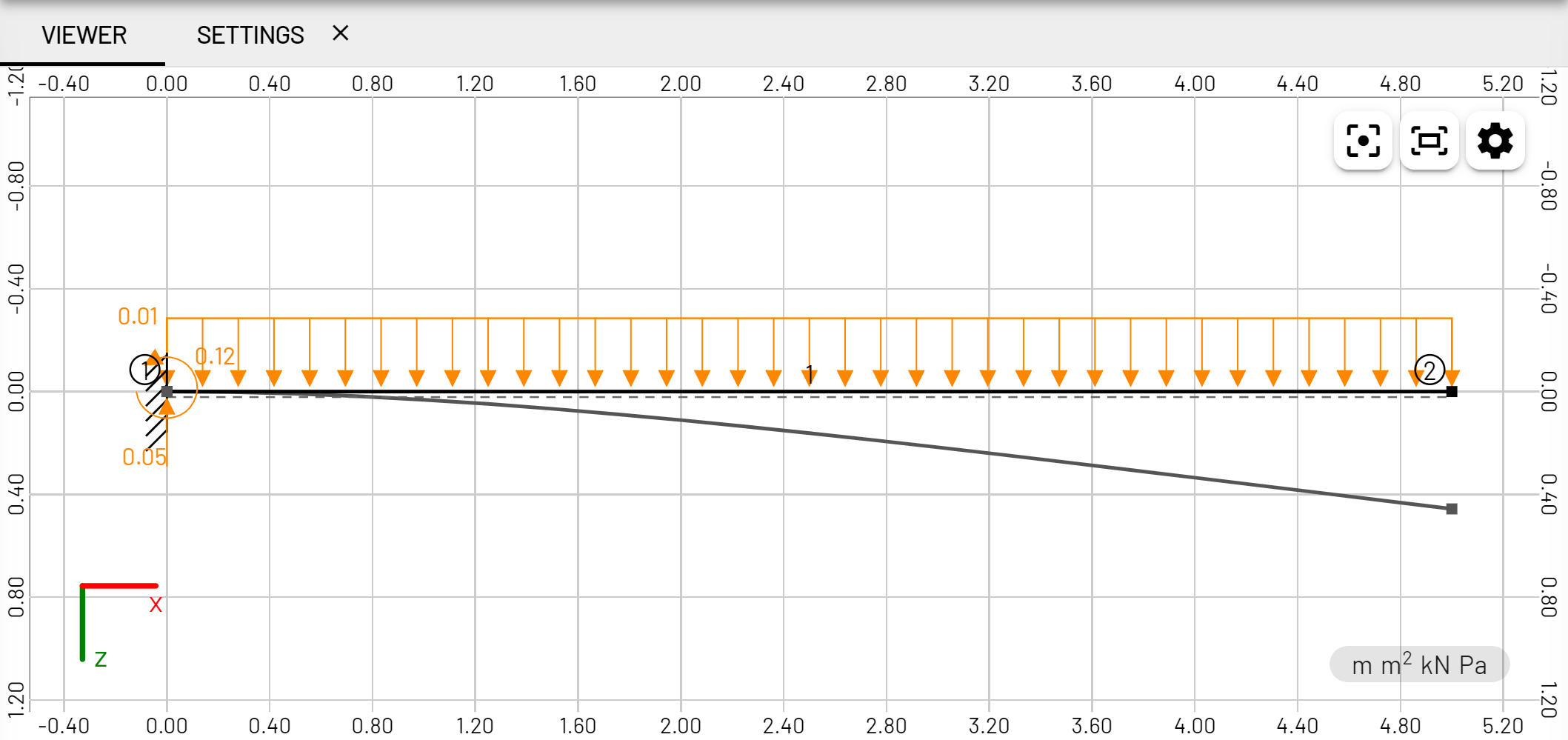

Ryat the fixed end to make it simply supported. How much does the mid-span moment grow? - Cantilever: compare the tip deflection with (see Checking results by hand), then halve in the Cross sections tab.
- Pratt truss: the joints in this example are rigid. Tick both end hinges on every bar to make it a true truss, then compare the axial forces. Now remove one diagonal: does the truss still stand?
- Three-span continuous beam: the beam is supported only at its ends. Tick
Dzat the inner nodes B and C to make it continuous, and watch the hogging moments appear over the supports. - Portal frame: tick both end hinges on the beam to model pinned beam-column connections, or make the right support a pin instead of a roller.
- Temperature load: restrain
Dxat both supports and watch the axial force appear.
Worked tutorials
- Three-hinged frame: reactions, N, V and M checked by hand.
- Plane truss: method of joints, method of sections and a zero-force member.
Contribute an example
Have a good teaching model? Share it via a link on GitHub Discussions or Twitter and we will add it to the gallery.
